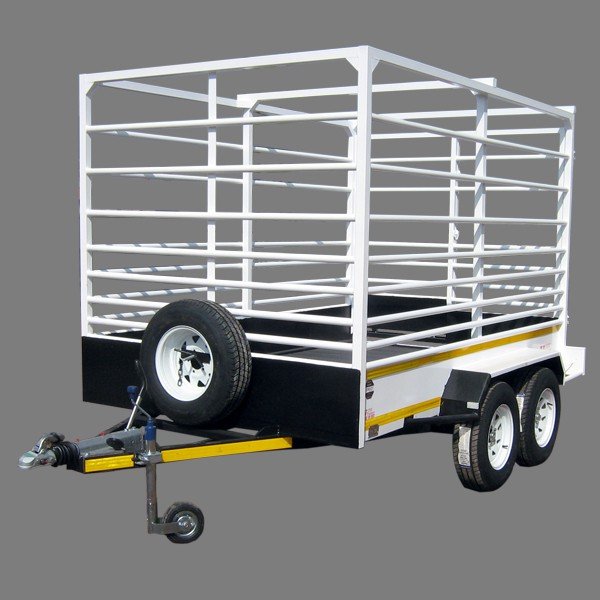

2300kg GVM Double Axle Cattle Trailer – 3.0m x 1.8m (Model SB21A)
Skyward Trailers > Products > 2300kg GVM Double Axle Cattle Trailer – 3.0m x 1.8m (Model SB21A)

2300kg GVM Double Axle Cattle Trailer – 3.0m x 1.8m (Model SB21A)

R58,000.00

Compare
Category: Tag:

* 1 x 30m x 18m Double Axle Cattle Trailer with Brakes, 2 x 1600kg Axles, 2300kg GVM, 14” Wheels
* 100mm x 50mm x 2mm Lipped Channel Chassis and 2mm Thick Lipped Channel Floor, Wheels on the Outside of the Trailer
* Drain Strips in the Floor 18m Rails, First 300mm Closed with Plate – Main Frame Built from 50mm Square Tube
* Swing Sliding Gate Combo at the Back with Rollers at the Bottom
* 1x 14” Spare Wheel on the A-frame
* 48mm Jockey Wheel in the Front
* LED Lights

Description

1. GENERAL

Type:
Cattle

GVM:
2300kg

2. CHASSIS/FRAME

Chassis Material:
100mm x 50mm x 2mm Lipped Channel

A-Frame Material:
76mm x 38mm x 5mm Open Channel

Construction:
Ladder frame

Corrosion Resistance:
Painted 2K Duco

3. BODY/DECK

Size:
3.0m x 1.8m

Floor Material:
2.0mm Thick Lipped Channel, Wheels on the Outside of the Trailer, with Drain Strips

Headboard:
1.8m Headboard, First 300mm Closed with Plate – Main Frame Built from 50mm Square Tube

Side Rails/Panels:
1.8m Rails, First 300mm Closed with Plate – Main Frame Built from 50mm Square Tube

Tailgate/Rear Gate:
Swing Sliding Gate Combo at the Back with Rollers at the Bottom

Ramps:
None

Anchor Points:
None

4. AXLES/WHEELS

Number of Axles:
2

Axle Type:
Leaf spring

Axle Capacity:
1600kg each

Wheels:
14″

Spare Wheel:
14″ on the A-frame

Jockey Wheel:
48mm in front

5. COUPLER/BRAKES

Coupler Capacity:
2700kg

Brakes:
Yes

6. LIGHTING

Type:
12V LED Lights
