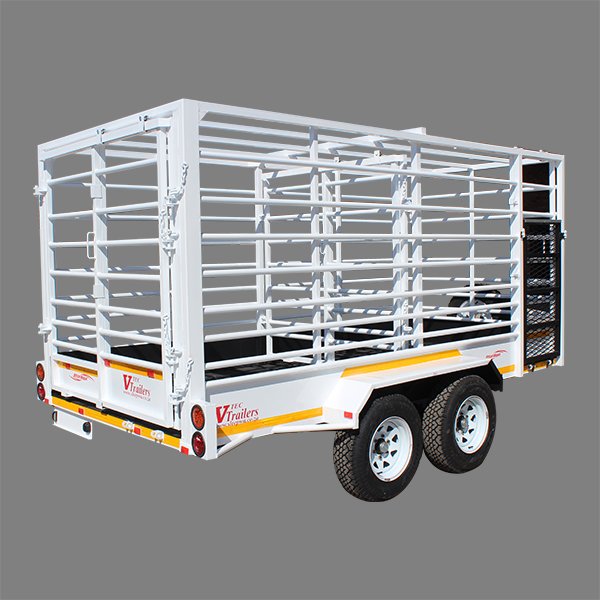

Description
1. GENERAL
Type:
Cattle
GVM:
3000kg
2. CHASSIS/FRAME
Chassis Material:
76mm x 38mm x 5mm steel open channel
A-Frame Material:
100mm x 50mm x 6mm steel open channel
Construction:
Ladder frame
Corrosion Resistance:
Painted 2K Duco
3. BODY/DECK
Size:
4.0m x 1.8m
Floor Material:
2.0mm Thick Lipped Channel, with Drain Strips and M12 Removable Grid, Wheels on the Outside of the Trailer
Headboard:
1.8m Headboard, First 300mm Closed with Plate – Main Frame Built from 50mm Square Tube
Side Rails/Panels:
1.8m Rails, First 300mm Closed with Plate – Main Frame Built from 50mm Square Tube. Sliding gate on the right side.
Tailgate/Rear Gate:
Swing/sliding gate hanging from above on bearings. Another swing/sliding gate in the middle.
Additional Support:
3 x Additional Supports in the Length on the Top
Ramps:
1 x Ramp on the Right-Hand Side – Can Also be Used at the Back
Anchor Points:
None
4. AXLES/WHEELS
Number of Axles:
2
Axle Type:
1020mm, 8 Blade HD Leaf Springs
Axle Capacity:
1800kg each
Wheels:
15″
Spare Wheel:
15″ on the A-frame
Jockey Wheel:
60mm in front
5. COUPLER/BRAKES
Coupler Capacity:
3000kg
Brakes:
Yes
6. LIGHTING
Type:
12V LED Lights
