Description

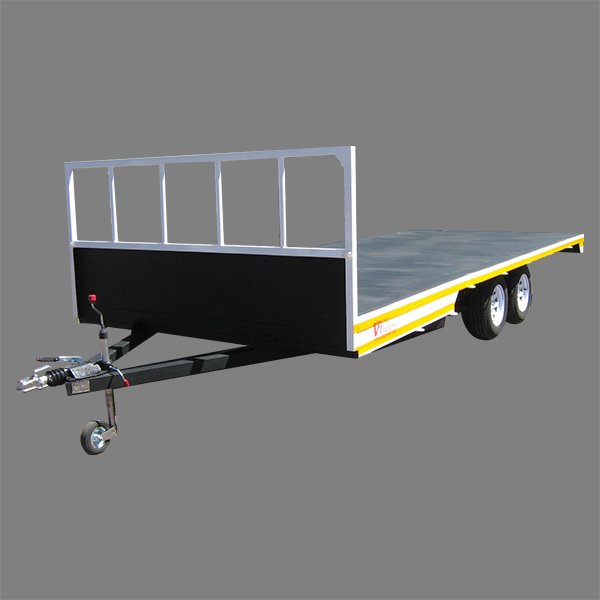

Introducing the 3ton GVM Double Axle Flatbed Trailer (6.0m x 2.2m) (SB12) – the ultimate solution for transporting heavy loads with ease and reliability. Whether you’re a professional in the transport industry or need a robust flatbed trailer for personal use, this model is engineered to meet the highest standards of durability and performance.
Key Features of Our Flatbed Trailer for Sale
Superior Build Quality
Constructed with a 76mm x 38mm x 5mm open channel chassis and a 100mm x 50mm x 6mm open channel A-frame, this flatbed trailer ensures unmatched strength and stability. The ladder frame construction adds to its robustness.
Spacious and Practical Design
With dimensions of 6.0m x 2.2m, the trailer offers ample space for a variety of loads. The 2.0mm thick steel plate floor with the wheels under the trailer enhances its practicality and load capacity.
Safety and Convenience
Equipped with 2 x 1.8ton axles, a 3ton GVM, and 14” wheels, this flatbed trailer promises safe and smooth transportation. The inclusion of a 3 Ton Coupler, brakes, and a 60mm jockey wheel in the front provides added safety and ease of use.
Comprehensive Package
Comes with a 14” spare wheel, a 1.0m high headboard in front (first 300mm closed with plate), and 12V LED lights for enhanced night-time safety.
Versatile and Customizable
While the trailer has no side rails or tailgate, mesh sides and other upgrades are available on request. It’s offered in multiple color options: White, Black, Green, or Brown.
Product Specifications for Our Flatbed Trailer for Sale
General
- Type: Flatbed
- GVM: 3000kg
Chassis/Frame
- Chassis Material: 76mm x 38mm x 5mm open channel
- A-Frame Material: 100mm x 50mm x 6mm open channel
- Construction: Ladder frame
- Corrosion Resistance: Painted 2K Duco
Body/Deck
- Size: 6.0m x 2.2m
- Floor Material: 2.0mm thick steel plate with the wheels under the trailer
- Headboard: 1.0m high in front, first 300mm closed with plate – main frame built from 76mm rectangle tube
- Side Rails/Panels: None
- Tailgate/Rear Gate: None
- Ramps: None
- Anchor Points: 16mm continuous rope tie downs under the trailer
Axles/Wheels
- Number of Axles: 2
- Axle Type: Leaf springs
- Axle Capacity: 1800kg each
- Wheels: 14″
- Spare Wheel: 14″ under trailer
- Jockey Wheel: 60mm in front
Coupler/Brakes
- Coupler Capacity: 3000kg
- Brakes: Yes
Lighting
- Type: 12V LED Lights
